What This Product Does
TP-LINK’s Wi-Fi Extender Adapter Model: TL-WA850RE extends your Wi-Fi signal with no need for new wires or drilling. Ideal for areas with poor quality Internet or blackspots within the premises. With simple configration, you can establish and extend your Wi-Fi networking infrastructure in a flash. With a speed of up to 300Mbps, TL-WA850RE transmits HD streaming and even 3D movies to every room, making it a great choice for an easy to build multimedia entertainment network.
Wi-Fi Range Extender Adapter Model: TL-WA850RE
- Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Easily expand wireless coverage at a push of Range Extender button

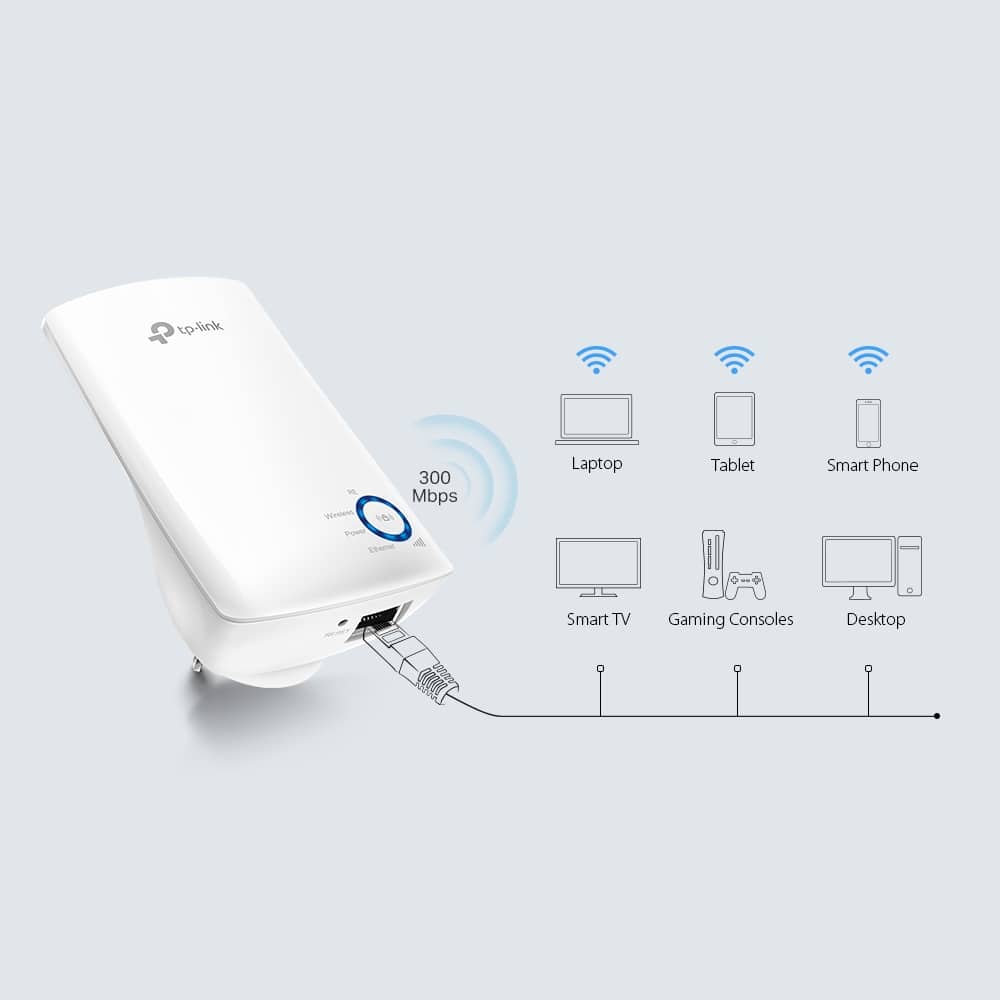

- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
- Tether App allows easy access and management using any mobile device
- LED Control function includes a Night Mode for peaceful sleep
*Actual data will vary due to the network conditions and environmental factors.
Miniature Design, Ultra-compact
With its new ultra-compact housing design, TL-WA850RE is much smaller than TP-LINK’s legacy mini 300Mbps Wi-Fi Range Extender Products.
Up to 300Mbps
With advanced HomePlug AV technology, TL-WA850RE provides users with stable, high-speed data transfer rates of up to 300Mbps. Together with its built-in AES encryption, the TL-WA850RE is a great choice for a whole home solution to connect all network compatible devices–from computers and game consoles to set-top boxes for IPTV to printers and NAS hard drives.
HD Streaming
Up to 300Mbps Wi-Fi speed ensures smooth HD streaming
Reduce Power Consumption Up to 85%
Pair Button for Easy Network Security
3. Press and hold the WPS button on your Modem Router until the WPS light starts flashing
4. On your selected device, select the Wi-Fi name ending with EXT (ie. Telstra5482_EXT) and type in the same Wi-Fi password as your Modem Router.
5. Enjoy your Range Extended Wi-Fi
Support QoS for Advanced Multiple-media Optimization
Quality of Service (QoS) function prioritizes the bandwidth requirements of data traffic. Users can choose which type of traffic they will use — Internet, Online Game, and Audio or Video, Voice over IP, and the QoS functions will guarantee clear, instant reproduction of that application, even when other applications are running on the network at the same time.
Miniature Design, Ultra-compact
With its new ultra-compact housing design, TL-WA850RE is much smaller than TP-LINK’s legacy mini 300Mbps Wi-Fi Range Extender Products.
HARDWARE FEATURES | |
---|---|
Plug Type | AU |
Standards and Protocols | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Interface | 1*10/100Mbps Ethernet Port |
Button | RE (Range Extender) Button, Reset Button |
Power Consumption | Maximum: 4.0W (220V/50Hz) Typical (aaprox): 3.0W (220V/50Hz) Standby: 0.7W (220V/50Hz) |
LED Indicator | PWR, WI-FI Strength |
Dimensions (WxDxH) | 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm) |
Antenna | 2 * internal |
WIRELESS FEATURES | |
---|---|
Frequency | 2.4~2.4835GHz |
Signal Rate | 11n: Up to 300Mbps (dynamic) 11g: Up to 54Mbps (dynamic) 11b: Up to 11Mbps (dynamic) |
Reception Sensitivity | 270M: -68dBm@10% PER 130M: -68dBm@10% PER 108M: -68dBm@10% PER 54M: -68dBm@10% PER 11M: -85dBm@8% PER 6M: -88dBm@10% PER 1M: -90dBm@8% PER |
Transmit Power | < 20 dBm (EIRP) |
Wireless Modes | Range Extender/Access Point |
Wireless Functions | WMM (Wi-Fi Multimedia) Wireless MAC Address Filtering Wireless Statistic Domain Login Function |
Wireless Security | 64/128/152-bit WEP WPA-PSK / WPA2-PSK |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | 300Mbps Universal Wi-Fi Range Extender TL-WA850RE Quick Installation Guide |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty | Limited 3-Year Warranty
For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma |
