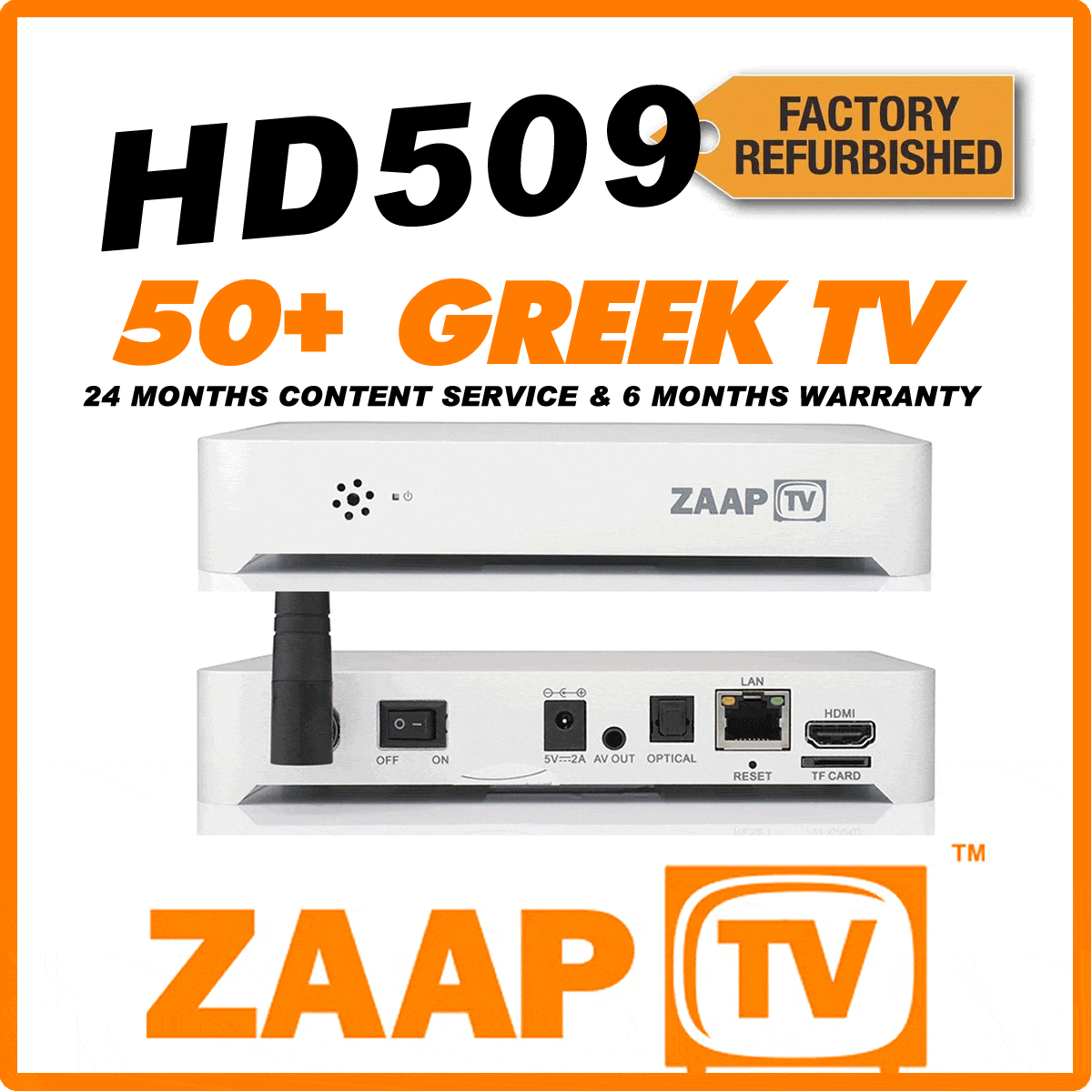

To get the high-quality Smart TV experience, connect your TV with the ZAAPTV™ HD509N device, add high-speed internet (Wi-Fi or Ethernet), and your TV connected experience will start.[/vc_column_text][vc_tabs][vc_tab title=”Product Specifications” tab_id=”1426211966-1-50″][vc_row_inner][vc_column_inner width=”1/2″][vc_column_text]PRODUCT SPECIFICATIONS
Length: 170mm / 6.7in.
Width: 135mm / 5.3in.
Height: 30mm / 1.2in.
Weight: 0.4kg / 0.88 lb.
OPERATING SYSTEM:
ZAAPTV™ OS 32-bit, Ver. 4.1.
CONNECTIVITY:
3x USB Socket (A type)
1x Audio/Video analog output
1x Coaxal Jack
1x HDMI Socket
1x LAN Socket (Mega)
1x TF card Slot
Built-in WIFI (Adjustable WIFI antenna)[/vc_column_text][/vc_column_inner][vc_column_inner width=”1/2″][vc_column_text]
HARDWARE SPECIFICATIONS:
CPU RK3066 Dual Core 1.5 Ghz.
GPU Quad GPU technology.
Memory 1 GB DDR3.
Flash 4 GB MLC Nand.
WIFI Realtek 802.11b/g/n, 802.3, 802.3u.
POWER SUPPLY SPECIFICATIONS:
Power Supply(Adapter) DC 5V/2A
Power Indicator (LED) Power “On”: Green / Standby: Red.
OTHER:
1x DC Input Jack
Power Switch
Remote Receiver
Power LED.
HDMI Cable
Ethernet Cable
Decoder formats | HD MPEG1/2/4, RM/RMVB(8/9/10), H.264, HD AVC/VC-1,Xvid/DivX 3/4/5/6, Divx HD, Divx Plus HD, RealVideo8/9/10 |
---|---|
Media formats | AVI, Rm ,Rmvb, MKV, ISO, VOB, DAT,MPG/MPEG, MP4, MOV, TS, XVID, WMV, ASF, FLV |
Music formats | MP3/WMA/AAC/WAV/OGG/AC3/MIDI/DTS/FLAC/APE/ALAC/M4A |
Photo formats | JPEG/BMP/GIF/PNG/TIFF |
File Browser | Photo/Music/Movies |
USB Host | High Speed USB 2.0 Support U Disk and USB HDD |
HDD File System | FAT16/FAT32/NTFS/EXT3 |
Subtitle support | SRT/SMI/SUB/SSA/IDX+USB/TXT |
HD video output | HD max. 1920×1080 pixels |
Other | 1080p 24Hz support, PPPoE support |
AUDIO OUT | |
---|---|
Audio Digital-to-analog converter | 192kHz/24-bit |
S/N Ratio | Min.80dBx2ch |
Digital audio output | Optical/HDMI |
VIDEO OUT | |
---|---|
Video output signal | NTSC and PAL TV system |
Analog video output | CVBS |
Digital video output | HDMI |
Instruction Manual
110V/240V Power adaptor with US/EU/UK/AU plug
Remote Control with Batteries.
10/100 Ethernet Cable
HDMI Cable ( AV Cable Optional Not in Box )[/vc_column_text][/vc_tab][vc_tab title=”Requirements” tab_id=”1526441221337-4-3″][vc_column_text css=”.vc_custom_1526446874688{margin-bottom: 0px !important;}”]REQUIREMENTS:
* We recommend an ADSL2+ connection with an Internet Speed of 6Mbps and above.
* For best streaming performance we also suggest a fixed Ethernet cable connection between the ZAAPTV device and the modem
* If you are unable to install the ZAAPTV device with an Ethernet connection and your ZAAPTV device is more than 6-7m from the modem, then we recommend a Powerline Adaptor.
To buy a Powerline Adaptor from our store, click on the link below:
TP-LINK AV600 Nano Powerline Adapter Starter Kit Model: TL-PA411KIT
Many things can interfere with your modem’s Wi-Fi signal and this can significantly affect the performance of your ZAAPTV device creating buffering and freezing problems whilst streaming your Favourite Greek or Arabic TV Channels.
If you are experiencing Buffering or Freezing problems, we suggest you read our post on Wi-Fi:
https://globetv.com.au/what-can-cause-interference-with-wifi/[/vc_column_text][/vc_tab][vc_tab title=”Warranty” tab_id=”1526441240500-5-4″][vc_column_text css=”.vc_custom_1526613188596{margin-bottom: 0px !important;}”]Warranty on the ZAAPTV HD509 devices are as follows:
- NEW – this is a NEW item which includes all Cables, Remote Controls and packaging in NEW Condition. Includes 2 Years Subscription and 12 Months Warranty on the ZAAPTV device.
- REFURBISHED – this is a used item which may have some minor marks or damage on the hardware device but is in as NEW Condition. All Cables, Remote Controls and packaging are in NEW Condition. Includes 2 Years Subscription and 6 Months Warranty on the ZAAPTV device.
- 2nd HAND/ USED – this is a used item which may have some minor marks or damage on the hardware device. All Cables, Remote Controls and packaging are in NEW Condition. Includes 2 Years Subscription and 3 Months Warranty on the ZAAPTV device.
- 2nd HAND/ USED – same as above, but Does Not Include Subscription.
All Warranty is back to base, which means the Customer must pay for shipping to send any item to our Offices.[/vc_column_text][/vc_tab][/vc_tabs][/vc_column][/vc_row]
